Authors: Artem Rodichkin, Goskov Konstantin

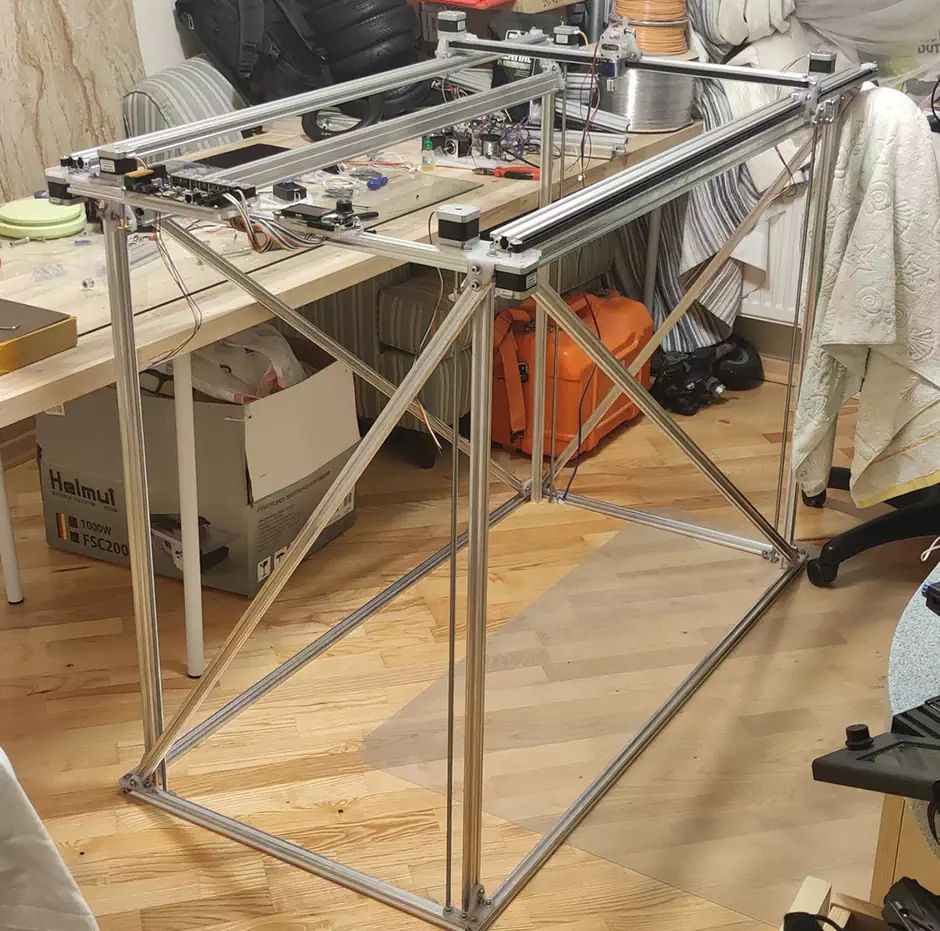

Assemble your 3D printer! Instructions, 3D model and customization

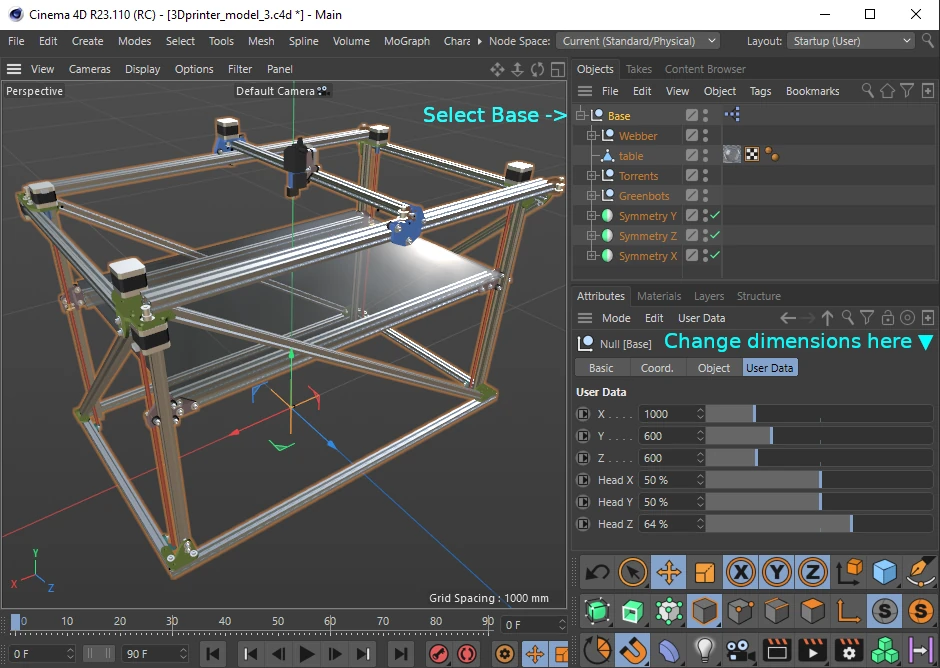

Download printer 3D model with customizable dimensions; default print area - 1200*600*900(height)
Download 3D printable STL parts
Download Cinema 4D
Parts needed to assemble the 3D printer:
Enter desired print area in mm:
Length
Height
20*20 extrusions:
40*20 extrusions:
Bolts and nuts:
Din 7991 m5 - 30
Din 912 m3 - 8
Din 912 m5 - 21
Din 985 m3 - 8
Din 9021 m5 - 97
Printhead:
cartridge probe (thermistor)
Volcano nozzle
Throat for E3D V6
Volcano heater block
E3D V6 heatsink
24V volcano heater cartridge
24V 30x30 cooling fan
E3D V6 fan holder
volcano sillicone
BMG direct extruder
Frame:
Stepper motors 6 pcs
Thin stepper motor
Four way lead screws 8mm 4 pcs
Open builts wheels 21 pcs
Toothed pulley GT2-10 3 pcs
Toothed pulley with bearing GT2-10 3 pcs
GT2 belt 10mm
Rigid couplers 5x8 4 pcs
Electronics:
MKS monster
Power supply 24v 500w
Solid-state relays
Wire: STRANDED sftp cat 5 24 gauge copper ~5m
XH 2.54 connector wire for stepper 8 pcs
Reprap end-switch with cable 2 pcs
Power cable
Heatbed:
High temperature heat insulation
Two 6mm glass sheets with length and width of your print area
Infrared Film Heater (from warm floor) for build plate heating
